产品展示Products

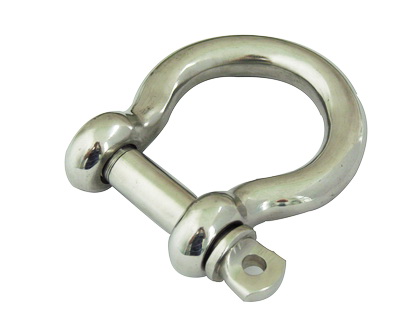

欧式大弓-S370CP
|
SIZE(mm)
|
φA(mm)
|
B(mm)
|
L(mm)
|
B.L.(kgs)
|
| 3 | 3 | 8 | 16.50 | 400 |
| 4 | 4 | 8 | 20.00 | 550 |
| 5 | 5 | 10 | 25.50 | 1200 |
| 6 | 6 | 12 | 30.00 | 1700 |
| 8 | 8 | 16 | 41.00 | 2500 |
| 10 | 10 | 20 | 51.00 | 4500 |
| 12 | 12 | 24 | 61.00 | 6000 |
| 13 | 13 | 26 | 66.50 | 6500 |
| 14 | 14 | 28 | 70.00 | 7000 |
| 16 | 16 | 32 | 82.00 | 10000 |
| 19 | 19 | 38 | 97.00 | 15000 |
| 22 | 22 | 44 | 110.00 | 19000 |
| 25 | 25 | 50 | 125.00 | 23000 |
| 28 | 28 | 56 | 140.00 | 26000 |
| 32 | 32 | 64 | 160.00 | 38000 |
locking pin, oval sink pin, square head pin available
