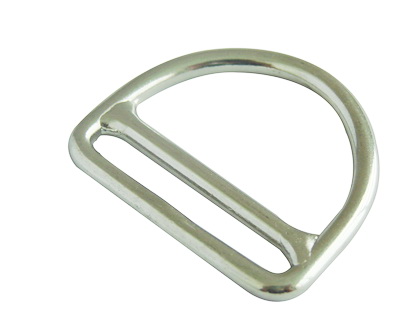

Dee ring (cross bar), SF32501
| SIZE(mm) | B(mm) | ΦD(mm) | ΦD1(mm) | L(mm) | B.L.(kgs) |
| 5x45 | 45 | 5 | 4 | 39.0 | 500 |
| 5x50 | 52 | 5 | 4 | 43.0 | 500 |
| 6x45 | 48 | 6 | 5 | 45.0 | 450 |
| 6x50 | 50 | 6 | 5 | 43.0 | 450 |
| 8x45 | 45 | 8 | 6 | 36.0 | 250 |
| 8x50 | 50 | 8 | 6 | 43.0 | 250 |
| SIZE(mm) | B(mm) | ΦD(mm) | ΦD1(mm) | L(mm) | B.L.(kgs) |
| 5x45 | 45 | 5 | 4 | 39.0 | 500 |
| 5x50 | 52 | 5 | 4 | 43.0 | 500 |
| 6x45 | 48 | 6 | 5 | 45.0 | 450 |
| 6x50 | 50 | 6 | 5 | 43.0 | 450 |
| 8x45 | 45 | 8 | 6 | 36.0 | 250 |
| 8x50 | 50 | 8 | 6 | 43.0 | 250 |
